건설분야 최고의 해석 솔루션 DIANA와 함께 합니다.
DIANA
Geotechnical

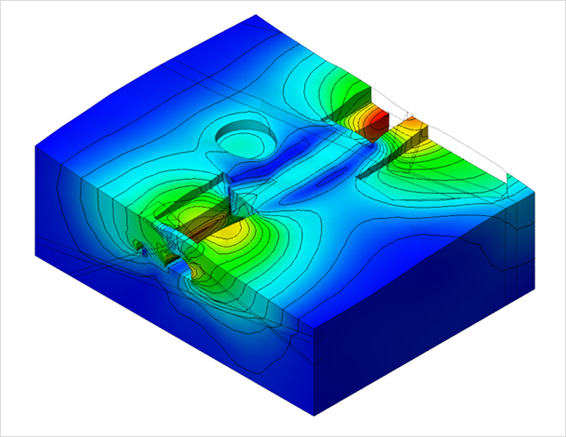

지반 해석과 지반과 구조물 사이의 상호 거동은 종종 엔지니어들에게 까다로운 문제를 만들어냅니다. 이러한 까다로운 지반 문제들은 DIANA로 빠르고 정확하게 해결될 수 있습니다. DIANA 프로그램은 기초, 제방, 터널, 굴착, 사면 안정, 광산 및 댐 등 다양한 용도로 흙과 암석 물질을 처리하기 위한 광범위한 최첨단 구성 모델을 제공합니다.
간극 수압과 압밀, 지하수 흐름, 지진 및 액상화 문제들에 대한 해석 기능은 가장 진보된 기능 중 하나이며, 간극수압과 응력의 연계 문제를 정확하게 해석하는데 필수적이라 할 수 있습니다. 또한 DIANA는 지반과 상호거동을 하는 강재와 철근 콘크리트 구조에 대한 진보된 기능들을 제공합니다.
지반해석 전용기능 (Dedicated Features for Geotechnical Analysis)
- In-situ Stress ( Ko procedure/gravity loading/pre-stress) and Pore-pressure Initialization
- Construction staged analysis
- Drained /undrained analysis

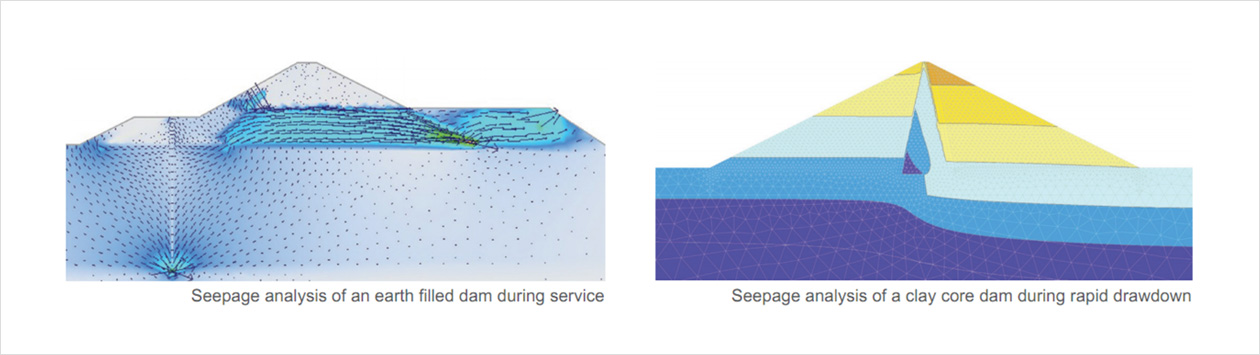

- Seepage analysis (steady state / transient)
- Saturated or partially saturated flow
- Consolidation analysis (full coupled stress-flow analysis)
- Pressure dependent degree of saturation
- Freely moving phreatic surfaces
- Porosity or saturation dependent permeability
- Deformation dependent density and porosity
- Dynamic (linear and nonlinear) and liquefaction analysis

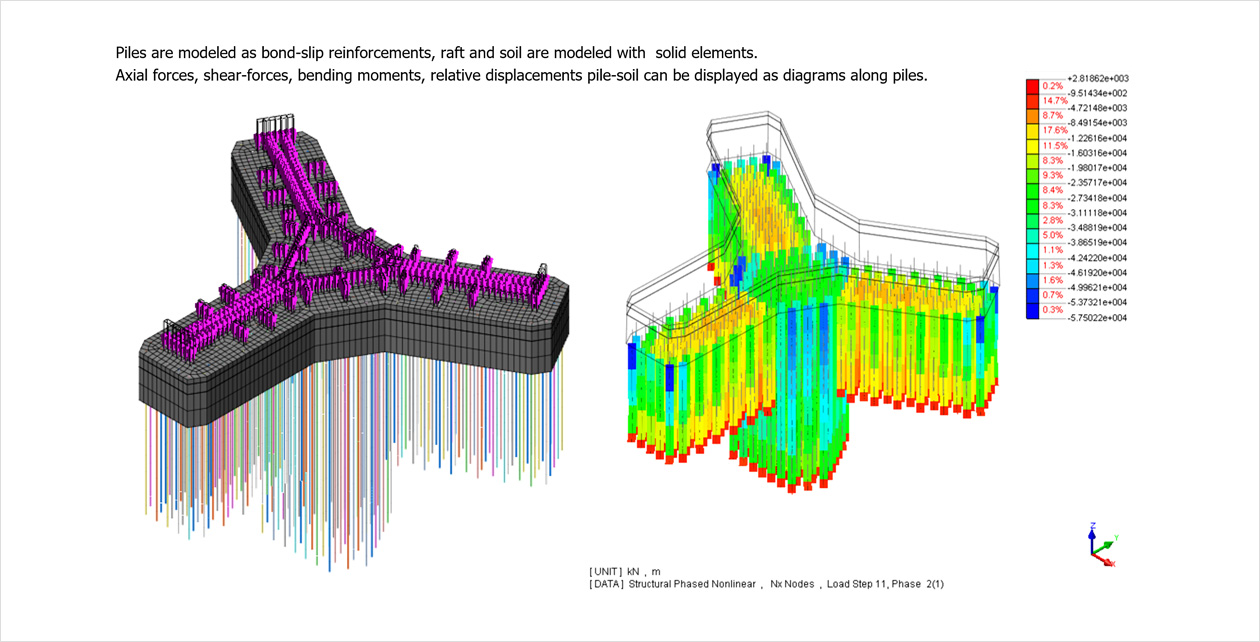

- Special (embedded) pile elements with nonlinear pile shaft and toe interfaces

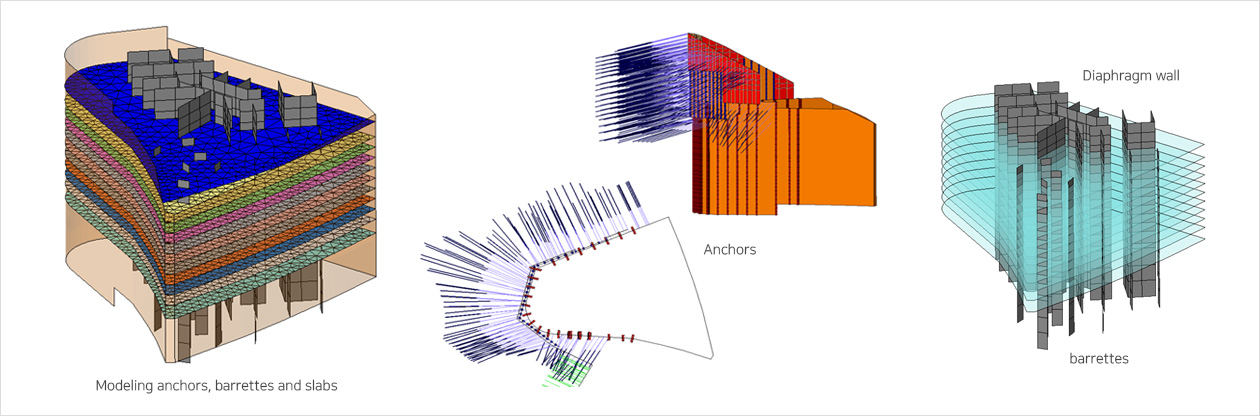

- Anchors, nails, and rock bolt modelling
- Geotextiles
- Strength reduction analysis (phi-c)
- Engineering liquefaction
흙과 암반에 최적화된 재료 모델 (material Models Suitable for Soil & Rock)
- Mohr-Coulomb, Tresca
- Drucker-Prager, Von Mises
- Transversely Isotropic
- Duncan-Chang
- Hoek-Brown
- Jointed Rock
- Modified Cam-Clay Jardine (London clay)
- Modified Mohr-Coulomb (Cap model)
- Classic Brick
- Special Interface Models
- User supplied subroutine
- Eigenvalue analysis (eigenfrequencies, eigenmodes, participation factors, effective masses)
- Direct frequency response analysis
- Modal frequency response analysis
- Spectral response analysis (ABS, SRSS, and CQC modal combinations)
- Linear and nonlinear time domain analysis (total, transient and steady state, solution)
- Various time integration methods, e.g. Newmark, Wilson-theta, Runge-Kutta
- Hybrid Frequency-time domain analysis (steady state solution)
- Fluid-structure interaction
- Multi-directional base acceleration loads
- Prescribed nodal acceleration loads
- Distributed mass elements (2D line elements + 3D surface elements)
- Bounding/boundary elements for far field behavior (2D line elements + 3D surface elements)
- Viscous, structural, and continuous damping
- Specified or calculated initial conditions
- Consistent or lumped mass and/or damping matrices
- Towhata-Iai liquefaction model (2D models and largely un-drained conditions)
- Nishi liquefaction model (for 2D/3D, partially drained conditions, arbitrary shearing direction)
- Bowl liquefaction model (for 2D/3D, partially drained conditions, horizontal shearing)
- User-supplied liquefaction models (USRLIQ subroutine)
